一、產(chan)品簡介

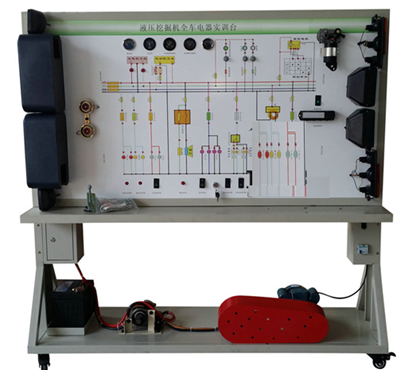

該液壓(ya)挖(wa)掘(jue)機(ji)(ji)全車電器實訓(xun)臺(tai)采(cai)用SW-45C 液壓(ya)挖(wa)掘(jue)機(ji)(ji)整車電器實物為基礎，充分展(zhan)示儀(yi)表系(xi)統(tong)、燈光(guang)系(xi)統(tong)、雨(yu)刮系(xi)統(tong)、喇叭系(xi)統(tong)、發動機(ji)(ji)電器系(xi)統(tong)、起動系(xi)統(tong)和充電系(xi)統(tong)等電器各系(xi)統(tong)的組成結(jie)構和工作過程。
適用(yong)于學(xue)(xue)校對整(zheng)車電(dian)器(qi)理論和維修實訓的教學(xue)(xue)需要。
二、功能特點
1.真實可運行(xing)的(de)整車電器系(xi)統，充分(fen)展(zhan)示整車電器系(xi)統的(de)組成結(jie)構。
接通電(dian)(dian)源，操縱示教板上的各種電(dian)(dian)器(qi)開關、按鈕、真實演示儀(yi)表系(xi)統(tong)(tong)(tong)、燈光系(xi)統(tong)(tong)(tong)、雨刮系(xi)統(tong)(tong)(tong)、喇叭系(xi)統(tong)(tong)(tong)、發動機電(dian)(dian)器(qi)系(xi)統(tong)(tong)(tong)、起(qi)動系(xi)統(tong)(tong)(tong)和充電(dian)(dian)系(xi)統(tong)(tong)(tong)等電(dian)(dian)器(qi)各系(xi)統(tong)(tong)(tong)的工作過

3.面板(ban)上安裝有檢測端子，可直(zhi)接在面板(ban)上檢測整車電(dian)器(qi)各系統電(dian)路(lu)元件的電(dian)信號，如電(dian)阻(zu)、電(dian)壓、電(dian)流(liu)、頻率信號等
4.設備面板(ban)(ban)(ban)部(bu)分(fen)采(cai)用面板(ban)(ban)(ban)部(bu)分(fen)采(cai)用1.5mm冷板(ban)(ban)(ban)沖(chong)壓成形結(jie)構，外形美觀(guan)；底架部(bu)分(fen)采(cai)用鋼(gang)結(jie)構焊(han)接(jie)，表(biao)面采(cai)用噴(pen)涂工(gong)藝處理，帶自鎖腳輪裝置。
三、技術規格(ge)
1.外形尺寸（約(yue)）：1740×650×1700mm(長×寬×高)
2.動(dong)力(li)電源：三相四線(或(huo)三相五線)380V±10% 50Hz
3.工作電壓：直流(liu)24V
4.工作溫(wen)度：-40℃～+50℃
三相(xiang)異步電(dian)動機
1.型 號：YT 100L1-4
2.電壓：AC 220V/380V
3.功(gong)率(lv)：2.2KW
4.轉速：1420r/min

5.鋼管：40*40*3mm
6.機(ji)柜：1.5mm冷板沖壓(ya)成形，背面設置(zhi)維修門；
7.移動腳輪：100*60mm
四、基(ji)本配置(zhi)（每臺）
