一、產品簡介

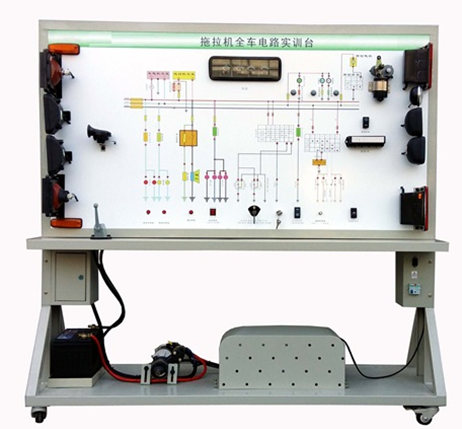

該設備采用清拖750P整車電(dian)器實物為基(ji)礎，充分展示儀表系(xi)(xi)統、燈光系(xi)(xi)統、雨刮(gua)系(xi)(xi)統、喇叭系(xi)(xi)統、發動(dong)機電(dian)器系(xi)(xi)統、起動(dong)系(xi)(xi)統和(he)充電(dian)系(xi)(xi)統等電(dian)器各系(xi)(xi)統的組成結(jie)構和(he)工(gong)作過程。
適用于學(xue)校對整車電(dian)器理論和維(wei)修實訓的(de)教學(xue)需(xu)要。
二(er)、功(gong)能特(te)點
1.真實可運(yun)行的整車電器(qi)系統，充(chong)分展示整車電器(qi)系統的組成結構。
接通電(dian)(dian)源(yuan)，操縱(zong)示(shi)教板(ban)上(shang)的(de)各種電(dian)(dian)器開關(guan)、按鈕(niu)、真實演示(shi)儀表(biao)系統(tong)(tong)、燈光系統(tong)(tong)、雨刮系統(tong)(tong)、喇叭系統(tong)(tong)、發動機電(dian)(dian)器系統(tong)(tong)、起動系統(tong)(tong)和充電(dian)(dian)系統(tong)(tong)等電(dian)(dian)器各系統(tong)(tong)的(de)工作(zuo)過程。
2.設備(bei)面板采(cai)用耐創擊、耐污染、防火、防潮的鋁(lv)塑板，表面經噴涂(tu)底(di)漆處理(li)；面板打印有彩色電(dian)路圖(tu)；學員可直觀(guan)對照電(dian)路圖(tu)和(he)實(shi)物，認識和(he)分析整車電(dian)器各系統的工(gong)作原理(li)。
3.面(mian)板上安裝有(you)檢測端(duan)子，可(ke)直接在面(mian)板上檢測整車(che)電(dian)(dian)(dian)器各系統電(dian)(dian)(dian)路元件的電(dian)(dian)(dian)信(xin)號，如電(dian)(dian)(dian)阻、電(dian)(dian)(dian)壓、電(dian)(dian)(dian)流、頻率信(xin)號等。
4.設(she)備面(mian)(mian)板(ban)部分采用(yong)面(mian)(mian)板(ban)部分采用(yong)1.5mm冷板(ban)沖壓成形(xing)結構，外(wai)形(xing)美觀；底架部分采用(yong)鋼結構焊(han)接，表面(mian)(mian)采用(yong)噴涂(tu)工藝處(chu)理，帶(dai)自鎖腳輪(lun)裝置(zhi)。
三、技(ji)術(shu)規格
1.外形尺寸（約）：1740×650×1700mm(長×寬×高(gao))
2.動力電源：三相四線(或三相五(wu)線)380V±10% 50Hz
3.工作電壓：直流12V
4.工作溫度(du)：-40℃～+50℃
三相異步電動機
1.型  號：YT 100L1-4
2.電壓：AC 220V/380V
3.功(gong)率：2.2KW
4.轉速(su)：1420r/min
四、基本配置(zhi)（每臺）
