一、產品簡介(jie)

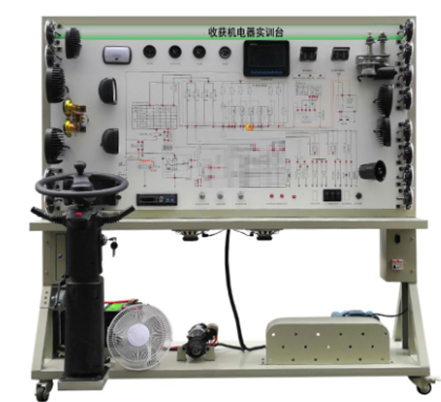

該設(she)備采用 4LZ-8B1收割(ge)機(ji)整車(che)電器實(shi)物為基(ji)礎，充(chong)分(fen)展示儀(yi)表系(xi)(xi)(xi)(xi)統(tong)(tong)(tong)(tong)、燈光系(xi)(xi)(xi)(xi)統(tong)(tong)(tong)(tong)、雨刮(gua)系(xi)(xi)(xi)(xi)統(tong)(tong)(tong)(tong)、喇(la)叭(ba)系(xi)(xi)(xi)(xi)統(tong)(tong)(tong)(tong)、發動(dong)機(ji)電器系(xi)(xi)(xi)(xi)統(tong)(tong)(tong)(tong)、起動(dong)系(xi)(xi)(xi)(xi)統(tong)(tong)(tong)(tong)和(he)充(chong)電系(xi)(xi)(xi)(xi)統(tong)(tong)(tong)(tong)等電器各系(xi)(xi)(xi)(xi)統(tong)(tong)(tong)(tong)的組成(cheng)結構和(he)工作過(guo)程。
適用于學校對整(zheng)車(che)電器理論(lun)和(he)維(wei)修實訓(xun)的教學需要。
二、功(gong)能(neng)特(te)點
1.真實可(ke)運行的整(zheng)車電器系統，充(chong)分展示整(zheng)車電器系統的組成結(jie)構。
接(jie)通電源，操縱示教板(ban)上的(de)各種電器開關、按鈕(niu)、真實演示儀表系(xi)統、燈(deng)光系(xi)統、雨刮系(xi)統、喇叭(ba)系(xi)統、發(fa)動(dong)機電器系(xi)統、起動(dong)系(xi)統和充電系(xi)統等電器各系(xi)統的(de)工(gong)作過(guo)程。
2.設備面板(ban)采(cai)用耐創擊(ji)、耐污染、防(fang)火、防(fang)潮的鋁塑(su)板(ban)，表面經噴(pen)涂底漆處理(li)；面板(ban)打印有彩色電路圖(tu)；學員可直觀(guan)對照電路圖(tu)和(he)實物(wu)，認識和(he)分析整車電器(qi)各系統的工(gong)作原理(li)。
3.面板上(shang)安裝(zhuang)有檢測端子，可(ke)直接在(zai)面板上(shang)檢測整車(che)電(dian)器各系統電(dian)路元件的電(dian)信號，如電(dian)阻、電(dian)壓、電(dian)流、頻率信號等(deng)。
4.設備面板(ban)部(bu)分(fen)采用(yong)面板(ban)部(bu)分(fen)采用(yong)1.5mm冷板(ban)沖壓成形結(jie)構，外形美觀；底架(jia)部(bu)分(fen)采用(yong)鋼結(jie)構焊接，表(biao)面采用(yong)噴涂工藝(yi)處理，帶自(zi)鎖(suo)腳輪裝置。
三、技術(shu)規格
1.外(wai)形(xing)尺(chi)寸（約(yue)）：1740×650×1700mm(長×寬×高)
2.動力電源：三相(xiang)四線(xian)(或三相(xiang)五線(xian))380V±10% 50Hz
3.工(gong)作電壓(ya)：直流24V
4.工作溫度：-40℃～+50℃
四(si)、基本(ben)配置（每(mei)臺）
